Duet 3 Expansion Board 1XD
CHF 68.95 incl. VAT
Country of origin:
Available immediately
Product description

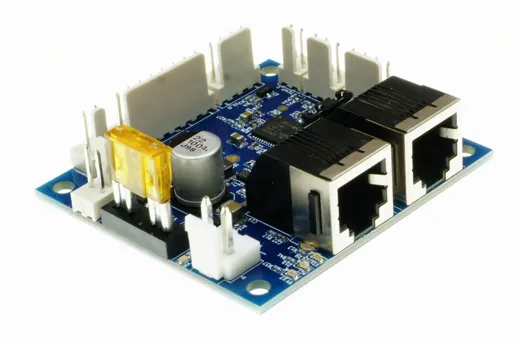

The Duet 3 Expansion 1XD is a CAN-FD connected expansion board for the Duet 3 Mainboard that provides connection to an external stepper driver and associated peripherals. It has standard Duet 3 RJ11 connectors for daisy-chaining the CAN-FD bus and accepts up to 48V to allow sharing power supplies with stepper drivers up to 48V.
FEATURES
Processor
ARM Cortex M0+ processor running at 48MHz.
Connectivity
RJ11 CAN In and CAN Out connectors to connect to the Duet 3 CAN-FD bus.
External Stepper Driver Connection
5V differential Step, Dir and Enable outputs for an external stepper driver (can be used in differential or single ended mode).
Medium current outputs
Two medium-current (2A max recommended) outputs at VIN voltage with PWM capability and built-in flyback diodes.
IO
One thermistor input (reduced accuracy compared to other Duet 3 boards, designed for motor temperature measurement). One 5V-level output with PWM capability (3mA max). Three digital inputs with permanent 27K pullup resistors, protected against over-voltage.
Voltage
12V-48V.
Firmware
RepRapFirmware 3.x
| Item no. | 01900348.19 |
| Barcode | 5060662920714 |
| Manufacturer | Duet3D |
| Stock | 12 pcs |
| Supplier article number | 5060662920714 |
| Country of origin | Great Britain |
