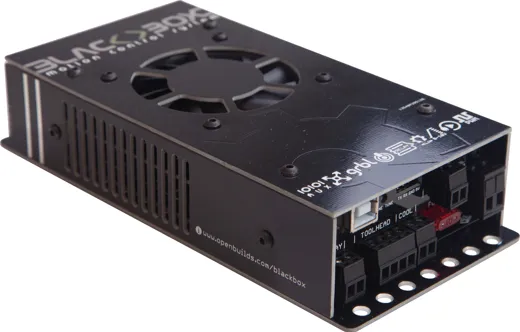

OpenBuilds BlackBox Motion Control System 2790-Kit

The all-in-one plug-and-play system BlackBox Motion Control System from OpenBuilds is revolutionizing the CNC.

CNC milling cutters, plasma cutters, laser cutters or any other CNC machine - the BlackBox takes care of the job thanks to its numerous connection options.

10 ampere input power fuse

Configurable relay for general applications (plasma triggers, coolant pumps, spindle control, etc.)

Door interlock signal connector to allow machines with enclosures to stop / resume when the door opens / closes

4X High Powered 4.0A (Peak) stepper driver

Serial auxiliary input for alternative connectivity expansions

USB interface for plug and play

Up to 24 V 5 A switching output for coolants such as 24 V DC pumps, magnets, contactors or semiconductor relays

Polarity protection of the input power with display LED

5 V PWM and 5 V direction spindle signals

VFD spindle holder (0-10 V)

Simple plug-and-play connections that work directly with the OpenBuilds Xtension cabling ecosystem
3 x end stop inputs with optional current output (selectable 5 V / 24 V) for use with mechanical or power supply
Switch like inductive sensor
Endstop inputs are protected against high voltages to enable the use of inductive 24 V sensors
XYZ probe input
Slave axis can be configured as slave X, Y or Z
Up to 1/32 microstep (standard 1/8 for higher torque)
