E3D Lite6 HotEnd Full Kit - 1.75mm mit Bowden Addon 01900121.0

From experience we know that many people are satisfied when you can print PLA, ABS. That is why E3D has designed lite6. The E3D-Lite6 is the little brother of the E3D-v6. A prerogative at an attractive price with many possibilities. For example, the interchangeable nozzles. As an official reseller of E3D, we have almost all spare parts in stock.

Difference between E3D-Lite6 and E3D-v6

Benefits • Nozzle are exchangeable from 0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.60mm 0.80mm
• Nozzle are the same as with E3D-v6
• E3D Vulcano can also be used with the E3D-Lite6. Nozzle Diameter of the E3D Volcano 0.60mm, 0.80mm, 1.00mm 1.20mm
• Significantly cheaper than an E3D-v6
• Easy assembly

Disadvantage

• Maximum temperature of 245 degrees
• Available for 1.75mm filament only

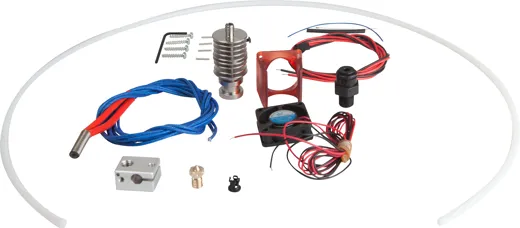

Metal Parts
1 x Stainless Heatsink (Contains brass embedded bowden coupling ring pre-fitted in top)
1 x Aluminium Heater Block
1 x Brass Nozzle (0.4mm)
Electronics
1 x 100K Semitec 104GT2 NTC thermistor
1 x 12v 30W Heater Cartridge
1 x 12v 30x30x10mm fan
4 x 0.75mm Ferrules - for Solder-Free Wire Joins (You should only need 2, the other 2 are spares)
Fixings
4 x Plastfast30 3.0mm x 16mm screws to attach the fan to the fan duct.
1 x M3x3 socket dome screw and M3 washer to clamp thermistor
1 x M3x10 socket dome screw to clamp the heater block around the heater cartridge
1 x Fan Duct (Injection Moulded Red Transparent Polycarbonate)¿
1 x Small Black Plastic Collet (For securing PTFE tubing into embedded bowden coupling installed in heatsink) Bowden Versions also Include

800mm of 4mm outer diameter, 2mm inner diameter PTFE tubing.
1 x Screw in Coupler for extruder end of tubing.
