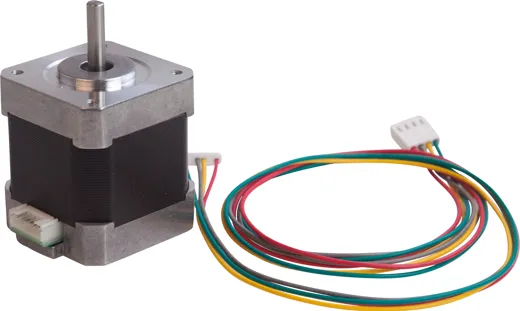

NEMA 17 Stepper motor 1.8 degree, 1.68A
CHF 24.45 incl. VAT
Available immediately
This NEMA17 stepper motor is ideal for your Reprap, MakerBot and other 3D printers.
The motor can be connected directly to the Ramps with the 700mm long cable with Dupont connector.
Properties
Cable length 700mm with 4 pin Dupont connector
200 steps per revolution (1.8 degrees / step)
Nominal voltage 12V, or 24V
Nominal current 1.68 A
Holding torque: 0.44 Newton meters
Phase resistance: 1.65 ohms ± 10% (20 ° C)
Phase inductance: 3.8 mH ± 20% (1 kHz 1 V rms)
Shaft diameter: 5 mm (fits perfectly on our GT2 pulleys)
Shaft length: 22mm
Motor depth: 48 mm
Motor width: 42mm
Motor depth: 42mm
The motor can be connected directly to the Ramps with the 700mm long cable with Dupont connector.
Properties
| Item no. | 01900502.48 |
| Barcode | 01900502.48 |
| Manufacturer | 3DWare.ch Handelsware |
| Stock | 8 pcs |
| Supplier article number | MNEMA17-48 |
| Steps | 1.8 deg/step |
| Voltage | 24v, 12v |
