E3D NEMA 17 Stepper motor 0.9 degree, 1.4A 25mm

E3D NEMA 17 Stepper motor 0.9 degree, 1.4A 25mm

CHF 25.45 incl. VAT

Country of origin:

Available immediately

Quantity (pcs):

hilst the slimline motor is a great lightweight option and suitable for the majority of Titan extruder setups, the motor torque is more marginal than the compact but powerful motor. As such we can not guarantee it will be sufficiently powerful for every setup, those using Volcano, long Bowden systems or printing fast should be particularly cautious.

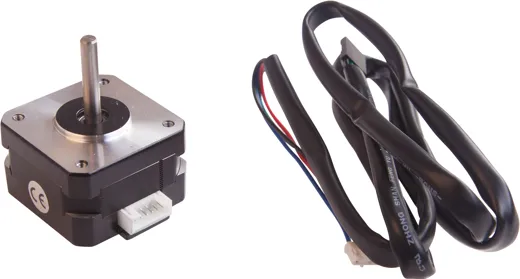

A Nema17 12.7N-cm stepper motor with D-shaft and 1.0m wiring.
Ultra-Slim NEMA17 Stepper Motors for use with your Titan extruder. Only 25mm body length, producing 12.7N-cm of torque these motors make an excellent choice for use on your extruder.

These motors have been custom made for use with our Titan and Titan Aero extruders, striking the perfect balance of size, weight, torque and shaft. They arrive supplied with a pluggable cable 1000mm in length.

This motor weighs 162g on its own and 190g with the supplied cable.

Manufacturer E3D Holding Torque 1.295 kg-cm Shaft 5mm Rated Voltage 2.7v Rated Current 1.4 A/phase Stepping Angle 0.9° Lead Length 1000mm Body Length 25mm
Item no. 01900513.3
Barcode 01900513.3
Manufacturer E3D
Stock 7 pcs
Supplier article number MT-1701HSM140AE
Steps 0.9 deg/step
Diameter 5mm
Voltage 24v, 12v
Country of origin Great Britain
