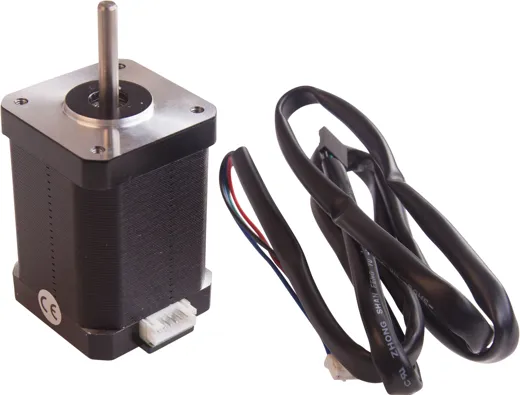

E3D NEMA 17 Stepper motor 1.8 degree,  2.0A
E3D

E3D NEMA 17 Stepper motor 1.8 degree, 2.0A

CHF 39.95 incl. VAT

Country of origin:

Available immediately

Quantity (pcs):

If you want to use this motor, we recommend using a high current step driver like the DRV 8825. Standard drivers like the A4988 can generate the rated current of 2.0 A for this motor, but this is prone to overheating at the limit of their specification and trigger their thermal overload protection. As a result, the engine stops running but no circuits are damaged.

Also note that the step angle for this motor is 1.8 degrees instead of 0.9 degrees for the rest of our range. When upgrading to a Super Whopper, make sure that the steps / mm of your firmware are adjusted accordingly (i.e. double).

  • NEMA 17.
  • 1.8 ° step angle.
  • 200 steps per revolution.
  • 4V nominal voltage.
  • 2A phase.
  • 8.2 kg / cm (114oz / in) holding torque.
  • 60mm body.
  • 5mm output shaft.
  • Item no. 01900513.4
    Barcode 01900513.4
    Manufacturer E3D
    Stock 6 pcs
    Supplier article number MT-1705HS200AE
    Steps 1.8 deg/step
    Diameter 5mm
    Voltage 24v, 12v
    Country of origin Great Britain
