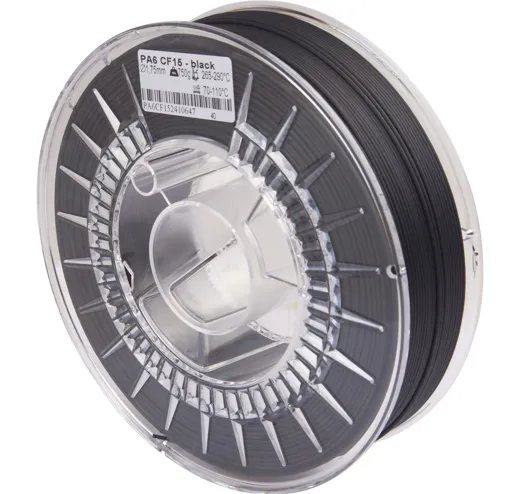

Filament Nylon PA6 CF15 Black 1.75mm
CHF 45.45 incl. VAT
Country of origin:
Properties of PA CF15 from the plastic family Nylon
Extruded polyamide 6 (PA6), reinforced with 15% carbon fibers for 3D printing with improved mechanical properties. The carbon fibers significantly improve the strength and rigidity of the filament, making it suitable for applications that require parts with high rigidity and durability. Other advantages of the filament include heat and chemical resistance. This high performance filament is designed for industrial use and technical/functional parts
PA CF properties
- Heat resistance
- High intensity
- High rigidity
- High toughness
- High impact resistance
- High dimensional stability
- Matte surface effect
Printability
| Printing temperature mm/s | 265 - 290°C |
|---|---|
| Printing speed | 45 - 60 mm/s |
| Temperature Printbed | 70 - 110°C |
| Level of difficulty | difficult |
| Surface | Normal |
| Specific weight | 1.27g/cm3 |
| Heat resistance temperature | 200°C |
| Possible nozzles | hardened Steel, ruby |
| Adhesion types | 3DLac Adhesion spray, PrintaFix, Spring steel plate PEI |
| Further | We recommend a hardened steel nozzle with a diameter of ≥ 0.6. |
Variants
| Item no. | M01150010.0750-2 |
| Barcode | M01150010.0750-2 |
| Manufacturer | Roffelsen |
| Diameter | 1.75mm |
| Plastic type | PA CF15 |
| Color | Black |
| Level of difficulty | difficult |
| Surface | Normal |
| Country of origin | European Union, Slovakia |
| Filament Packaging | Plastic Spool |
| Plastic family | Nylon |
