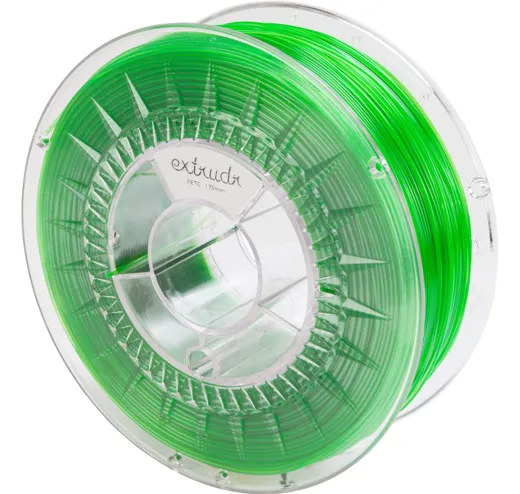

Properties of PETG from the plastic family PET
Polyethylene Terephthalate Glycol (PETG) is one of the world’s most common thermoplastic polymers. Extrudr PETG was developed for a wide range of applications
where the main requirement is a good balance between mechanical and optical material properties. The raw material is approved according to the FDA-, REACH- and RoHS-Standards. PETG is flame retardant according to UL 94 at a wall thickness of 3.2 mm.
Features PET-G:
- Good mechanical properties
- High chemical resistance
- Low warping tendency
- Low shrinking
- Recycleable
Printability
Printing temperature mm/s | 210 - 230°C |
---|
Printing speed | 40 - 60 mm/s |
---|
Temperature Printbed | 60 - 70°C |
---|
Level of difficulty | easy |
---|
Surface | Normal |
---|
Specific weight | 1.29g/cm3 |
---|
Heat resistance temperature | 75°C |
---|
Possible nozzles | brass, Coated, copper, hardened Steel, ruby, stainless steel |
---|
Adhesion types | 3DLac Adhesion spray, PrintaFix, Spring steel plate PEI |
---|
Special properties | Chemical Resistance, Transparent |
---|
Variants
Article | Filament | Packaging | Spool diameter | inner diameter | Spool width | Price | |
---|
01148205.11-4 | 1.1kg | Plastic Spool | 20 cm | 5.2 cm | 6.8 cm | CHF 42.45 | |
01148205.25-4 | 2.5kg | Plastic Spool | 30 cm | 5.2 cm | 10 cm | CHF 82.95 | |
01148205.100-4 | 10kg | Plastic Spool | 33.5 cm | 5.1 cm | 24.4 cm | CHF 317.95 | |
