Proto Plant

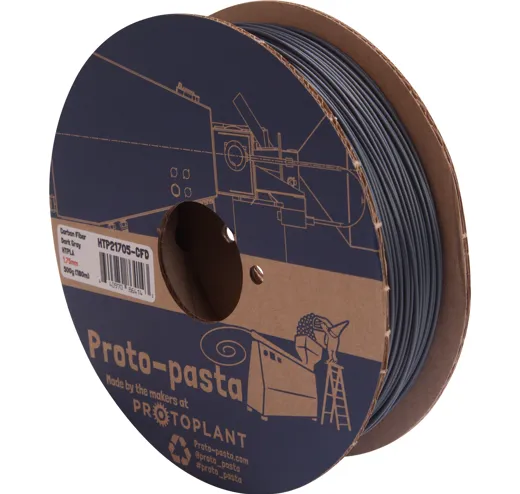

Filament High Performance HTPLA - Carbon Fiber Dark Gray 1.75mm

CHF 50.95 incl. VAT

Country of origin:

500g CHF 50.95 Available immediately

Quantity (pcs):

Properties of HTPLA Fiber from the plastic family PLA

Proto-pasta Carbon Fiber Composite HTPLA is a combination of milled carbon fibers and
high-performance PLA. Resulting 3D-printed prototypes and end-use parts are characterized by
exceptional stability of form and potential use up to 155 C deg when heat treated.


How to anneal:

Tempering objects made with HTPLA is not difficult, but needs to be done properly for best results.

Scale Values ​​(x/y-axis) 101.1%
Scale Values ​​(z-axis) 99%

1. Preheat the oven to 95–110 degrees.

2. When the oven is preheated, place your printed object in the oven.
We recommend placing the object on a flat aluminum sheet or similar.
Set a 10-minute timer

Printability

Printing temperature mm/s200 - 210°C
Printing speed20 - 40 mm/s
Temperature Printbed40 - 60°C
Level of difficultymedium
SurfaceMatt
Specific weight1.3g/cm3
Heat resistance temperature155°C
Possible nozzlescopper, hardened Steel, ruby
Adhesion types3DLac Adhesion spray, PrintaFix, Spring steel plate PEI
Special propertiesfiber containing
Further

Hardened nozzle of at least 0.50mm diameter is recommended

Variants

ArticleFilamentPackagingSpool diameterinner diameterSpool widthPrice
01184011.050-60.5kgCarton Spool20 cm5.2 cm5.5 cmCHF 50.95
Item no. M01184011.050-6
Barcode M01184011.050-6
Manufacturer Proto Plant
Diameter 1.75mm
Plastic type HTPLA Fiber
Color Grey
Special properties fiber containing
Level of difficulty medium
Surface Matt
Country of origin America
Filament Packaging Carton Spool
Plastic family PLA
