Properties of HTPLA Iron from the plastic family PLA

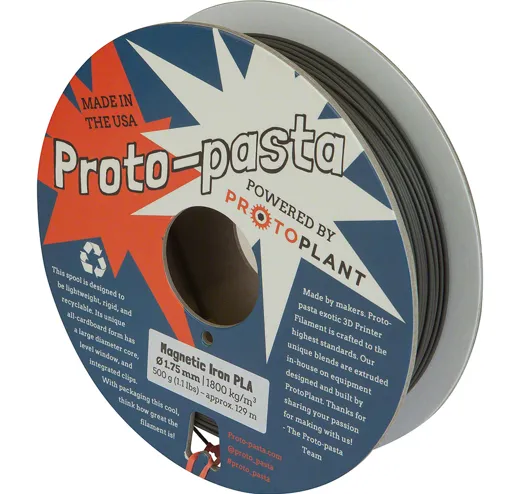

Proto-pasta Rustable Magnetic Iron Metal PLA Composite is actually ferromagnetic. It responds to magnets and behaves similarly to pure iron! Encapsulated in plastic, the iron maintains a stable matte, cast metal finish as printed, but can be rusted when desired.
- Weighted feel with 1.5x the density of standard PLA Rustable to create modern artifacts in a few easy steps
- Attracts magnets (neodymium type recommended for strongest attraction)
- Induction at magnetic saturation, about 0.15 Tesla
- Relative (to air) Permeability - between 5 and 8 independent of frequency up to 1 MHz
- Permeability - between 62E-7 and 100E-7 H/m independent of frequency up to 1 MHz
- Magnetic Iron PLA is slightly more brittle than standard PLA and requires extra care when handling.
Printability
Printing temperature mm/s | 190 - 200°C |
---|
Printing speed | 20 - 30 mm/s |
---|
Temperature Printbed | 40 - 60°C |
---|
Level of difficulty | medium |
---|
Surface | Normal |
---|
Specific weight | 1.85g/cm3 |
---|
Heat resistance temperature | 60°C |
---|
Possible nozzles | copper, hardened Steel, ruby |
---|
Adhesion types | 3DLac Adhesion spray, PrintaFix, Spring steel plate PEI |
---|
Special properties | Metalliferous |
---|
Further | Hardened nozzle of at least 0.50mm diameter is recommended
|
---|
Variants
Article | Filament | Packaging | Spool diameter | inner diameter | Spool width | Price | |
---|
01198011.050-2 | 0.5kg | Carton Spool | 20 cm | 5.2 cm | 5.5 cm | CHF 62.95 | |
01198011.150-2 | 1.5kg | Carton Spool | 20 cm | 5.2 cm | 6.7 cm | CHF 128.95 | |
