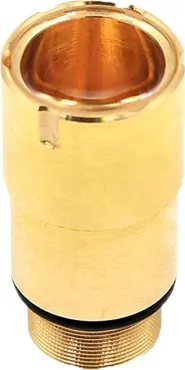

3DWare.ch Handelsware High-Pressure Air-Assist Nozzle Kit 002456

The high pressure air-assist nozzle is an invaluable resource for cutting and engraving with a laser. The up to 6.5 times the speed of laser cutting and engraving compared to the base speed as well as a significant improvement in the quality of the processed objects make it a perfect tool for anyone who wants to produce high quality items.

Buying the nozzle is also a pragmatic decision as it extends the time intervals between cleaning routines and improves the front lens by protecting it from smoke and dust particles. The length of the High-Pressure Air Assist Nozzle can be adjusted for different material thicknesses by + 8 / -4 mm for the XF + laser head or + 5 / -4 mm for the XF + laser head with the µSpot Lens Upgrade. The High-Pressure Air-Assist Nozzle is compatible with the new generation of XF + laser heads (with or without µSpot Lens Upgrade). For the XF + laser head without µSpot Lens Upgrade variant, a special sleeve IS supplied to ensure compatibility.

The high pressure air assist jet kit includes:

High pressure air assist nozzle

XF + lens adapter sleeve

Air pipe connector (M5 / 4 mm)

O-ring seal (8x1 FPM)

Air pipe (Ø4mm; 7 m long)

Lens key

Four M3x3 screws

Four M3x5 screws

Alle Daten und Downloads findest du hier:
https://optlasersgrav.com/files-download
