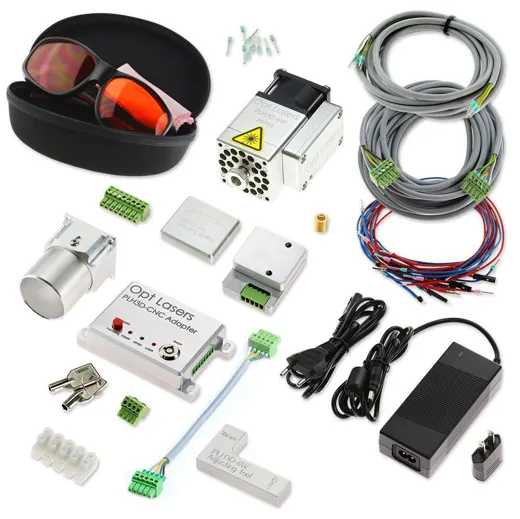

Universal CNC Laser Upgrade Kit with PLH3D-6W-XF

CHF 998.95 incl. VAT

Available immediately

Quantity (pcs):

About the engraving laser head PLH3D-6W-XF

The leading 6 W laser in the PLH3D series. Professional engraving laser head for industrial applications. Robust design, compatibility with all types of control signals used in the CNC in the 3D printing market, as well as with a wide range of power supplies, the most powerful fan available in its size, the best cooling and smoke evacuation. It Comes With A Lens Adjustment Tool That Easily Adjusts The Focus Distance.

Via the universal laser adapter PLH3D-CNC
The main function of the PLH3D-CNC adapter is to “arm” and “disarm” the laser head. Arming means switching on the head power supply; the charged head is then able to generate a laser beam. Disarming (switching off the head power supply) puts the laser head in a safe state in which the generation of a laser beam is completely impossible.

The laser head can be checked by generating a short laser pulse at maximum power.

Built-in safety devices prevent misuse and unexpected behavior in an emergency. The key switch protects the laser head from arming by children and other unauthorized persons. The laser head is always armed manually by the user at the push of a button. A special circuit prevents arming in the event of a malfunction of the internal electronics. The laser head is automatically disarmed in an emergency: power failure, power supply failure, breakage or disconnection of the laser head cable. After disarming, the system remains in a secure state and waking up always requires the user to press the button.

Main features of the PLH3D CNC adapter:

  • Soft start
  • Indicator LEDs - power, sharp, laser function
  • Built-in microcontroller - watchdog
  • Two programmable release inputs
  • Two external safety clamps (for example: safety key, emergency stop)
  • Automatic disarming after switching off
  • A second laser test
  • Compatibility with the PLH3D laser heads
  • Key lock to prevent use by unauthorized personnel
  • Machined aluminum quality housing
  • One-button system (arming, testing and setting of the activation modes)


  • All kinds of CNC control signals

    Use only one input during the connection!

    Universal adapter enables the connection of all types of signals that are used in CNC machines.

    All input wires are labeled for ease of use.

  • Analog modulation 0 - 5 V.
  • Analog modulation 0 - 10 V
  • TTL / PWM modulation 0 - 5 V
  • TTL / PWM modulation 0 - 10 V
  • TTL / PWM modulation 0 - 24 V
  • Low TTL / PWM


  • 7 types of special - universal plugs

    Caution:

    Remember that it is not a toy.
    Laser radiation is dangerous even if it is scattered or reflected from a surface.
    Always use a laser protection filter for 430 - 480 nm on your CNC machine to avoid reflected radiation.
    Never point the laser head at people or animals.
    Do not touch the beam as this could result in burns or other injuries.
    Do not look at the beam or beam spot while the material is being cut.
    Laser Radiation - Avoid direct or scattered radiation from the eyes or skin.
    Class 4 laser product.

    Technical data:

  • mass 40 x 54 x 78 mm
  • focus distance 20 - 120 mm
  • input voltage 12 - 24 V
  • max. power consumption 30 W
  • noise 58 dBA
  • weight 210 g
  • Mounting hole type M3 x 0.5 x 4.5 mm
  • Operating ambient temperature 0 - 45 ° C (32 - 113 ° F)
  • Mounting hole pattern 4 holes 24 x 15 mm (0.94 x 0.59 in)
  • Modulation input 1 0 - 5V analog / TTL / PWM
  • Modulation input 2 0 - 24V TTL / PWM
  • max. Modulation bandwidth 30 kHz
  • Wavelength of the laser diode 450 nm
  • Optical power of the laser diode 6 W
  • cable length 5 m
  • max. Power density 225 [kW / cm ^ 2]


  • Brands and boards supported by the manufacturer



  • Smooth Stepper
  • BlackBox Motion Control System
  • CSMIO Controller
  • EleksMaker Controller
  • Openbuilds Controller
  • Pokey57 CNC controller
  • Shapeoko CNC
  • Arduino Uno
  • gShield (grblShield v5)
  • Stepcraft CNC
  • WorkBee CNC
  • Duet Controller
  • CNC xPro v3 Controller
  • CNC xPro v4 Controller
  • X-Carve CNC
  • Z-Morph 3D Printer


  • Alle Daten und Downloads findest du hier:
    https://optlasersgrav.com/files-download
    Item no. 01405001.4
    Barcode 01405001.4
    Manufacturer 3DWare.ch Handelsware
    Stock 4 pcs
    Supplier article number 001797
    Voltage 24v, 12v
