Benefits of the WorkBee laser upgrade with the PLH3D-6W-XF laser head

Easy installation in Ooznest WorkBee CNC machine with Duet 3D controller

No additional cooling required

Driver integrated in the laser head

Compatible with accessories for easy operation

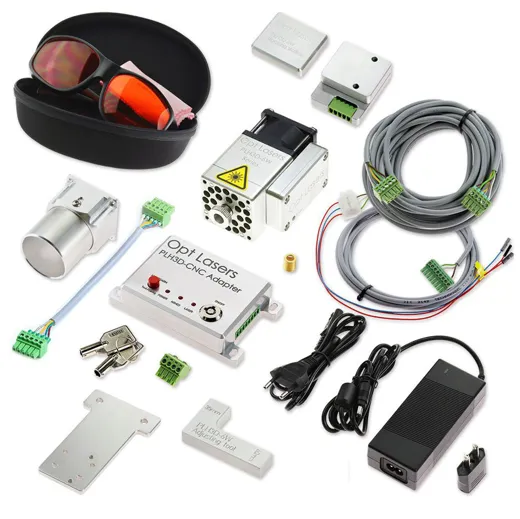

About the engraving laser head PLH3D-6W-XF

The leading 6 W laser in the PLH3D series. Professional engraving laser head for industrial applications. Robust design, compatibility with all types of control signals used in the CNC in the 3D printing market, as well as a wide range of power supplies, the most powerful fan available in its size, the best cooling and smoke evacuation. It also comes with a lens adjustment that allows you to easily change the focus distance. Find out more about our Ooznest engraving laser.

Via the universal laser adapter PLH3D-CNC

The main function of the PLH3D-CNC adapter is to “arm” and “disarm” the laser head. Arming means switching on the head power supply; the charged head is then able to generate a laser beam. Disarming (switching off the head power supply) puts the laser head in a safe state in which the generation of a laser beam is completely impossible.

The laser head can be checked by generating a short laser pulse at maximum power.

Built-in safety devices prevent misuse and unexpected behavior in an emergency. The key switch protects the laser head from arming by children and other unauthorized persons. The laser head is always armed manually by the user at the push of a button. A special circuit prevents arming in the event of a malfunction of the internal electronics. The laser head is automatically disarmed in an emergency: power failure, power supply failure, breakage or disconnection of the laser head cable. After disarming, the system remains in a secure state and waking up always requires the user to press the button.

Main features of the PLH3D CNC adapter:

Softstart

Indicator LEDs - power, sharp, laser function

Built-in microcontroller - watchdog

Two programmable release inputs

Two external safety clamps (for example: safety key, emergency stop)

Automatic disarming after switching off

A second laser test

Compatibility with the PLH3D laser heads

Key lock to prevent use by unauthorized personnel

Machined aluminum quality housing

One-button system (arming, testing and setting of the activation modes)

Caution:

Remember that it is not a toy.
Laser radiation is dangerous even if it is scattered or reflected from a surface.
Always use a laser protection filter for 430 - 480 nm on your CNC machine to avoid reflected radiation.
Never point the laser head at people or animals.
Do not touch the beam as this could result in burns or other injuries.
Do not look at the beam or beam spot while the material is being cut.
Laser Radiation - Avoid direct or scattered radiation from the eyes or skin.
Class 4 laser product.

Technical data:

mass 40 x 54 x 78 mm

focus distance 20 - 120 mm

Focused beam, point size @ 30 mm 0.1 x 0.1 mm

Focused beam spot size @ 55 mm 0.1 x 0.125 mm

Focused beam spot size at 80 mm 0.1 x 0.3 mm

input voltage 12 - 24 V

max. power consumption 30 W

Modulation input voltage range 0 - 5 V

modulation type Analog / TTL

noise 58 dBA

weight 210 g

Mounting hole type M3 x 0.5 x 4.5 mm

Operating ambient temperature 0 - 45 ° C (32 - 113 ° F)

Modulation input 1 0 - 5V analog / TTL / PWM

Modulation input 2 0 - 24V TTL / PWM

max. Modulation bandwidth 30 kHz

Wavelength of the laser diode 450 nm

Optical power of the laser diode 6 W

Brands and boards supported by the manufacturer

Smooth Stepper

BlackBox Motion Control System

CSMIO Controller

EleksMaker Controller

Openbuilds Controller

Pokey57 CNC controller

Shapeoko CNC

Arduino Uno

gShield (grblShield v5)

Stepcraft CNC

WorkBee CNC

Duet Controller

CNC xPro v3 Controller

CNC xPro v4 Controller

X-Carve CNC

Z-Morph 3D Printer
