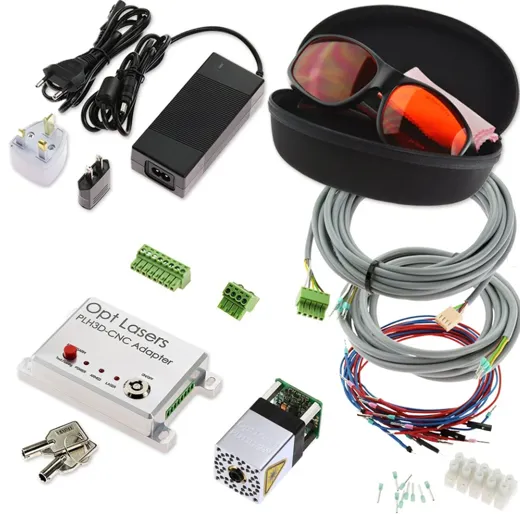

3DWare.ch Handelsware Universal CNC Laser Upgrade Kit with PLH3D-2W 002082

About the PLH3D-2W engraving laser head

PLH3D-2W is the professional 2W engraving laser head with medium power. This laser head enables cutting or engraving of materials such as wood, paper, leather, cardboard and many more.

Factory-set lens - The engraving laser head is supplied with the high-resolution triplet lens installed and set to 60.0 mm (measured from the front of the laser head to the plane of the engraving). This focal length has a well optimized focal spot size that is suitable for many engraving and cutting applications. This is the best optimized focus distance to start with!

This light 70 gram laser head does not require any additional cooling. Due to the fan design, this works as a fully customized air nozzle that protects the lens from dirt and cools the laser head. PLH3D-2W works with a matching 12 V power supply (at least 1.5 A current).

The head is equipped with an LED display that shows all the necessary information. The temperature control system would turn off the laser head when the critical temperature IS exceeded. The small driver, which is attached directly to the laser head, improves the speed of the diode modulation. This means that longer cables can also be connected to the head.

The analog modulation allows the user to control the laser power. 0 V = laser OFF, 5 V laser ON, 2 V ~ 40% power. This can also work as a TTL with a voltage of 0-5V.

To modulate the power using PWM, the base frequency must be set between 5 and 10 kHz. Through thermal tests on several prototypes, we were able to optimize the shape of the cooler and enable efficient cooling. In addition to the standard functionality, a small laser spot offers the possibility of illuminating boards that are covered with a light-sensitive surface, which enables very fast prototyping of circuit boards.

Main advantages of the PLH3D-2W laser head:

Customization offer for all manufacturers of 3D printers and CNC machines

No additional cooling required

Easy installation on all 3D printers and CNC routers

Drivers attached to the head

Our PLH3D series can work with various CNC and 3D printing machines, such as:

CNC shark

GeckoDrive 540

MYDIYCNC

Openbuilds - C-Beam / OX

Shapeoko 2

Shapeoko 3

Stepcraft

X-Carve upgrade

X controller

Zen Toolworks

Azteeg X3

Lulzbot

MakerBot Thing-O-Matic

MakerBot Replicator1 and clones

MakiBOX

MakerGear M2

PrintRBot upgrade

Replicator 2 and 2X

RepRap - Melzi-Board

RepRap - RAMPS1.4

RepRap - RUMBA

Starrbot

Solidoodle

Ultimaker 1 & 2

Velleman K8200

Protection:

The PLH3D-2W engraving laser head has a thermal protection system that protects the laser diode from overheating.

The analog input is protected by a 5V1 Zener diode if a voltage of more than 5V occurs occasionally. In spite of everything, this input should not be used with higher voltages.

The output of the driver is protected by a Schottky diode, which does not allow the reverse voltage to occur.

Caution:

Remember that it is not a toy.

Laser radiation is dangerous, even if it is scattered or reflected from a surface.

Always use a laser protection filter for 430 - 480 nm on your CNC machine to avoid reflected radiation.

Never point the laser head at people or animals.

Do not touch the beam, this can cause burns.

Do not look at the beam or beam spot while the material is being cut.

Laser Radiation - Avoid direct or scattered radiation from the eyes or skin.

Class 4 laser product

Technical data:

mass 30 x 30 x 68.5 mm

Focused beam spot size @ 30 mm 0.07 x 0.1 mm

Focused beam spot size at 60 mm 0.07 x 0.15 mm

input voltage 12 - 24 V

max. power consumption 16W

Modulation input voltage range 0 - 5 V

modulation type Analog / TTL

Distance between the mounting holes 20 mm

noise 23 dBA

weight 70 g

Operating ambient temperature 0 - 40 ° C (32 - 104 ° F)

Wavelength of the laser diode 445 nm (± 10 nm)

Optical power of the laser diode 2W

Working distance 30 - 120 mm / 1,18 - 4,72”

Brands and boards supported by the manufacturer

Smooth Stepper

BlackBox Motion Control System

CSMIO Controller

EleksMaker Controller

Openbuilds Controller

Pokey57 CNC controller

Shapeoko CNC

Arduino Uno

gShield (grblShield v5)

Stepcraft CNC

WorkBee CNC

Duet Controller

CNC xPro v3 Controller

CNC xPro v4 Controller

X-Carve CNC

Z-Morph 3D Printer

Alle Daten und Downloads findest du hier:
https://optlasersgrav.com/files-download
